DELIVERY TIME: APPROX. 1-4 WEEKS (EXACT DELIVERY TIME ON REQUEST)

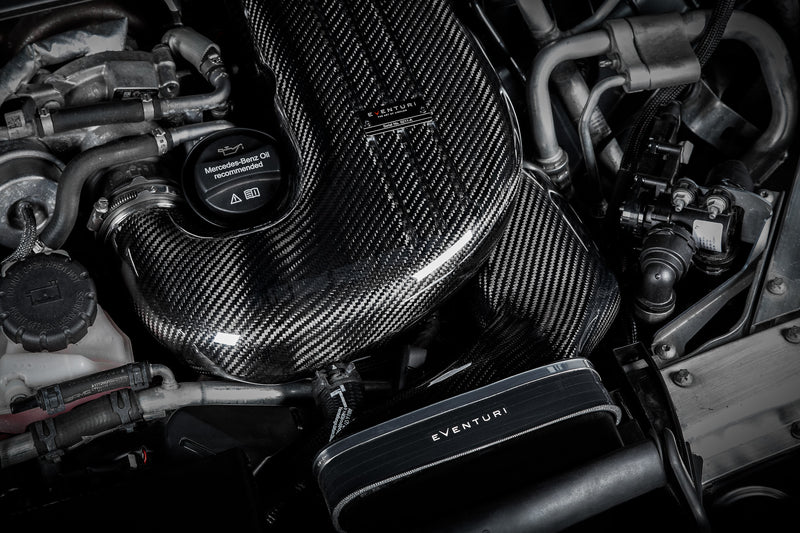

The Mercedes GLC63S AMG intake system is the culmination of extensive development and testing. Our design brief consisted of 3 main objectives: 1) Increased flow rate. 2) Low intake temperatures. 3) Smooth airflow. The first objective was met by utilising all of the limited space available in the GLC63S engine bay resulting in a 39% higher flow rate over the stock system. The second objective was met by designing a fully sealed system. The GLC63S engine bay reaches high temperatures with heat sources like the turbos in close proximity to the intake so it is crucial that the intake remains sealed. The final objective was met by designing an organically shaped system with custom rounded panel filters to ensure the airflow path contained no sharp corners and therefore allowed for the flow to remain laminar. With smooth transitions from the filters to the turbo inlets, our intake minimises the formation of turbulence and therefore the turbos are able to operate more efficiently.
With all 3 objectives met, our GLC63S AMG intake system delivers on all fronts and allows for the turbos to generate boost more efficiently. This results in an improved throttle response and genuine power gains which increase with higher states of tune.
Performance Increase – Stage 2: 22-30hp, 20-24ft-lb
Performance Increase – Stock: 10-12hp, 12-15ft-lb
Flowbench Data: Stock Airbox 381 CFM : Eventuri 531 CFM (Average Per Airbox)

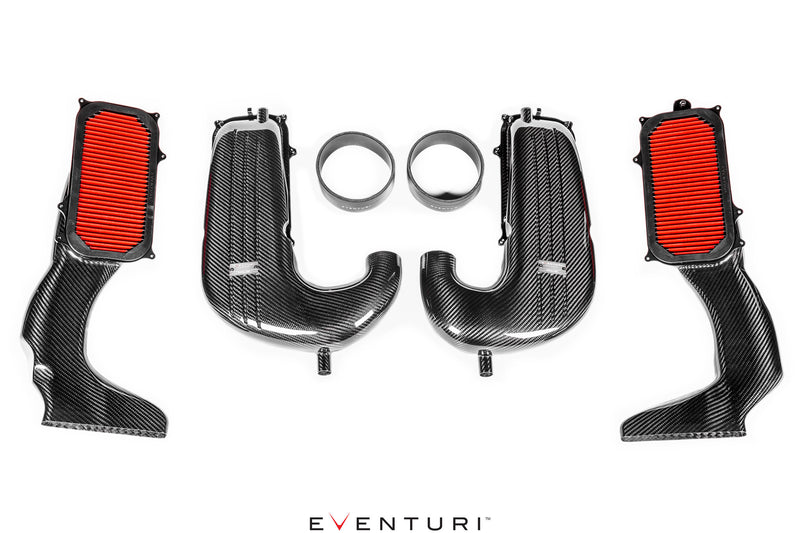

The Eventuri GLC63 GLC63S AMG intake system consists of:
- 2 x Carbon Fiber Airbox Lids with Turbo Inlet Transitions
- 2 x Carbon Fiber Airbox Bases with Inlet Duct Transitions
- 2 x Bespoke High Flow Panel Filters
- 2 x CNC Machined Stainless Steel Inlet Flanges
- 4 x CNC Machined Aluminium Filter Flanges
- 2 x CNC Machined MAP Bosses
- 4 x CNC Machined Rubber Mount Holders
- Laser Cut Stainless Steel Bracket Work
